Configuration
To use SUB-20 in I2C slave mode following should be done:
| • | Configure I2C Slave module with sub_i2c_config. Set desired I2C slave address and optional flag(s). |
| • | Connect I2C Slave module to FIFO with sub_fifo_config. Set FIFO_SELECT_I2C flag. |
| • | If required write data to FIFO with sub_fifo_write. This data will be read by external I2C master. |
| • | If required read data from FIFO with sub_fifo_read. This will be data written by external I2C master. |
Transactions

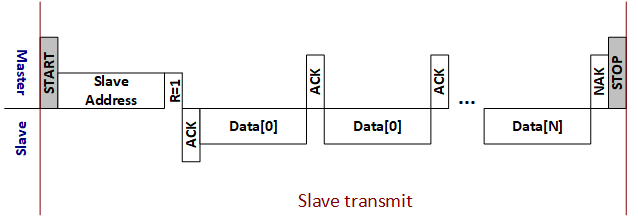

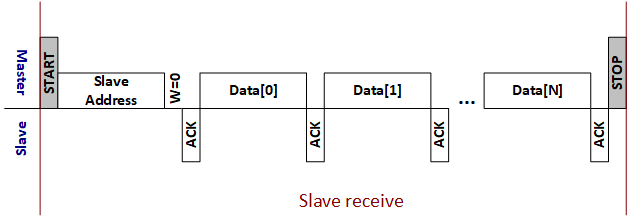

SUB-20 I2C slave module acts as zero address I2C slave device. Below are diagrams of receive and transmit transactions.
