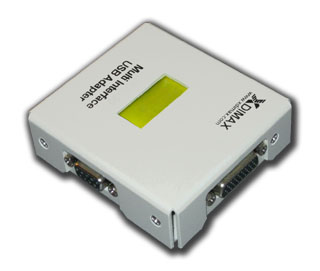

VENDUS  all-in-one  USB MDB vending workbench
USB MDB Master Slave, MDB Simulator, MDB Analyzer, VMC, Peripheral
ORDER NOW
 General Description  Features  Connection Diagram  Compatibility List
 SW Tools & Utilities  Downloads  Documentation  Applications
 Email Support & Forum  Order On-line  Warranty  Related Products


  • API for fast MDB VMC & Peripheral development
  • USB based real time MDB Analyzer
  • MDB 4.0 Level 1,2,3 VMC Simulator
  • USB to MDB Master & MDB Slave adapter
  • Standalone operation as VMC or VMC Simulator
  • NAMA EVA DTS 6.1 DDCMP & DEX Support
  • Field upgradable. Open for customizations & OEM
General Description

VENDUS is a comprehensive all-in-one solution for fast and efficient development of the MDB compliant Vending Machine Controllers (VMC) and MDB Peripheral devices. VENDUS can also be used as powerfull development tool, providing MDB Simulation and MDB analysing features.
Development with VENDUS does not require knowledge of the MDB specification. VENDUS workbanch let's concentrate on application development hiding complicity of the MDB protocol with it's mechanical, electrical and real time requirements. It allows building of the vending systems with desktop or embedded hosts runing non real time Windows, Linux or Mac OS. If required, development can be done on different levels of VENDUS API, starting from row data USB to MDB Master or USB to MDB Slave adapter API and up to VMC or Peripheral device API. Below is an overview of the different VENDUS based applications. All of them are available in single VENDUS device.

PC Based MDB VMC
 PC Based MDB Peripheral
 Standalone MDB VMC
MDB Simulator
 MDB Analyzer
 Adapter to MDB Interface

Features

  • Fast and easy development of the PC based vending applications
    • Based on popular SUB-20 HW & SW platforms and drivers
    • Multiple OS support: Windows XP/Win7, Linux, Mac, DOS. 64/32 bit support
    • API for C, C++, C#, VB, VBNet provided as DLL, static library or .Net component

  • Real Time USB MDB Analyzer
    • Parced and row MDB data presentation. Message filtering. Triggers
    • Precise time stamping for each received byte
    • Can be used simultaneously with MDB VMC Simulator

  • MDB Vending Machine Controller (VMC) Build Platform and Simulator
    • Standalone and USB host controlled operation modes
    • MDB Level 1,2,3 support according to the MDB 4.0 specification
    • Supports full range of the MDB specification defined Peripheral devices
    • NAMA 6.1 EVA DTS DDCM and DEX support
    • Can be used as compliancy checker for MDB peripheral devices

  • MDB Cashless Peripheral Device front end
    • Fully compliant with MDB Level 1,2,3. Minimal host interaction required
    • Host can be connected via USB or RS232 interface
    • Option to connect external contact and contactless card readers

  • USB to MDB Master and USB to MDB Slave Adaptor
    • Message or byte oriented data transfer
    • Receive data buffering and notification for event driven applications

  • Field upgradable and fully customizable device
    • Firmware can be upgraded via USB
    • Open for customizations to suite specific application requirements
    • Can be provided as OEM module

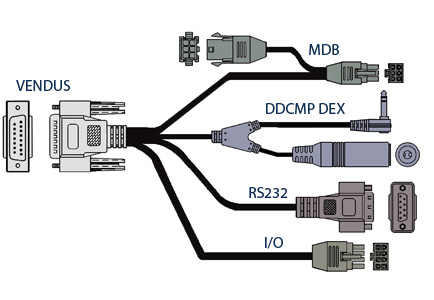

Connection Diagram


Downloads

Package Version Date Notes Key Features
Based on SUB-20 SW package
VENDUS API-0.0.1   0.0.1 Under Development MDB Simulator, MDB Analyzer, MDB Cashless, MDB MAster, MDB Slave

Documentation


Email Support & Forum


Order On-line


Type
Number 		Product
Status 		Price Buy Now
VENDUS Basic In Stock Request Quotation
VENDUS OEM Module In Stock Request Quotation

Related Products

  • SUB-20 Multi Interface USB Adapter
    SUB-20 is a low cost USB adapter with comprehensive and mutually convertible set of interfaces: USB-I2C, USB-SPI, USB-GPIO, RS232, RS485, MDIO, Ir, LCD, PWM

Warranty

VENDUS units are unconditionally guaranteed by XDIMAX. If VENDUS has not performed to your satisfaction, you can simply return the undamaged unit within 60 days period with the original sales receipt to the distributor from whom the unit was purchased and your money will be promptly refunded. You can also request the exchange of your broken (not properly working unit) with new one. This warranty applies only during normal use and care and is absolutely void if the product is misused, neglected, damaged, altered, or repaired by someone other than XDIMAX.
